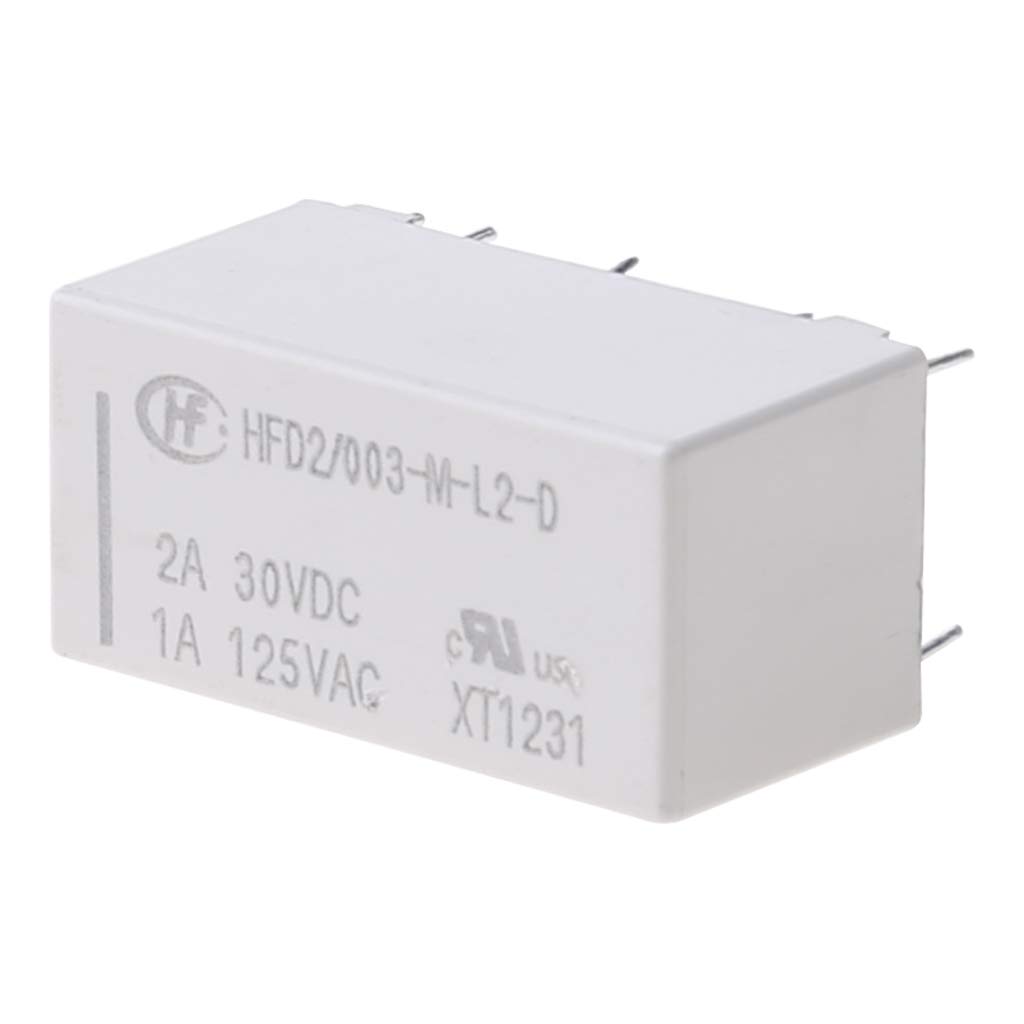

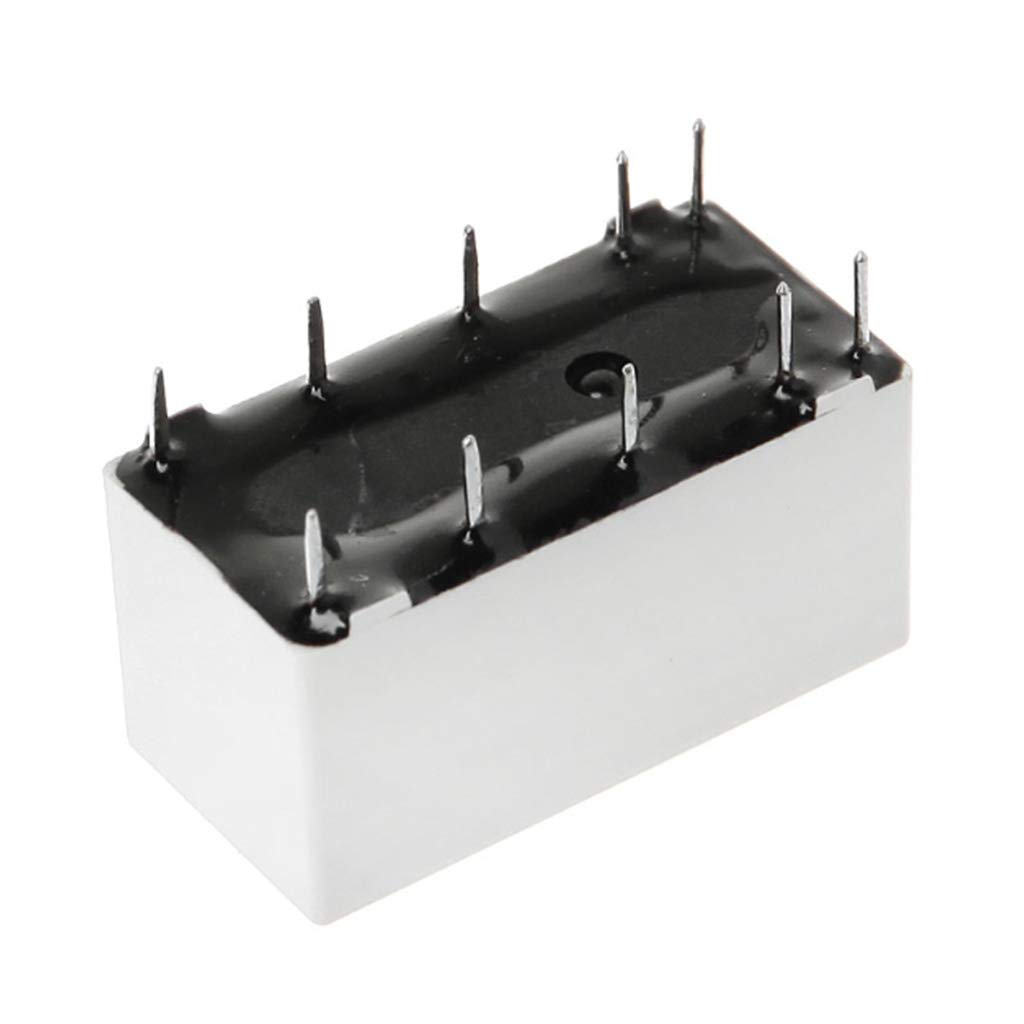

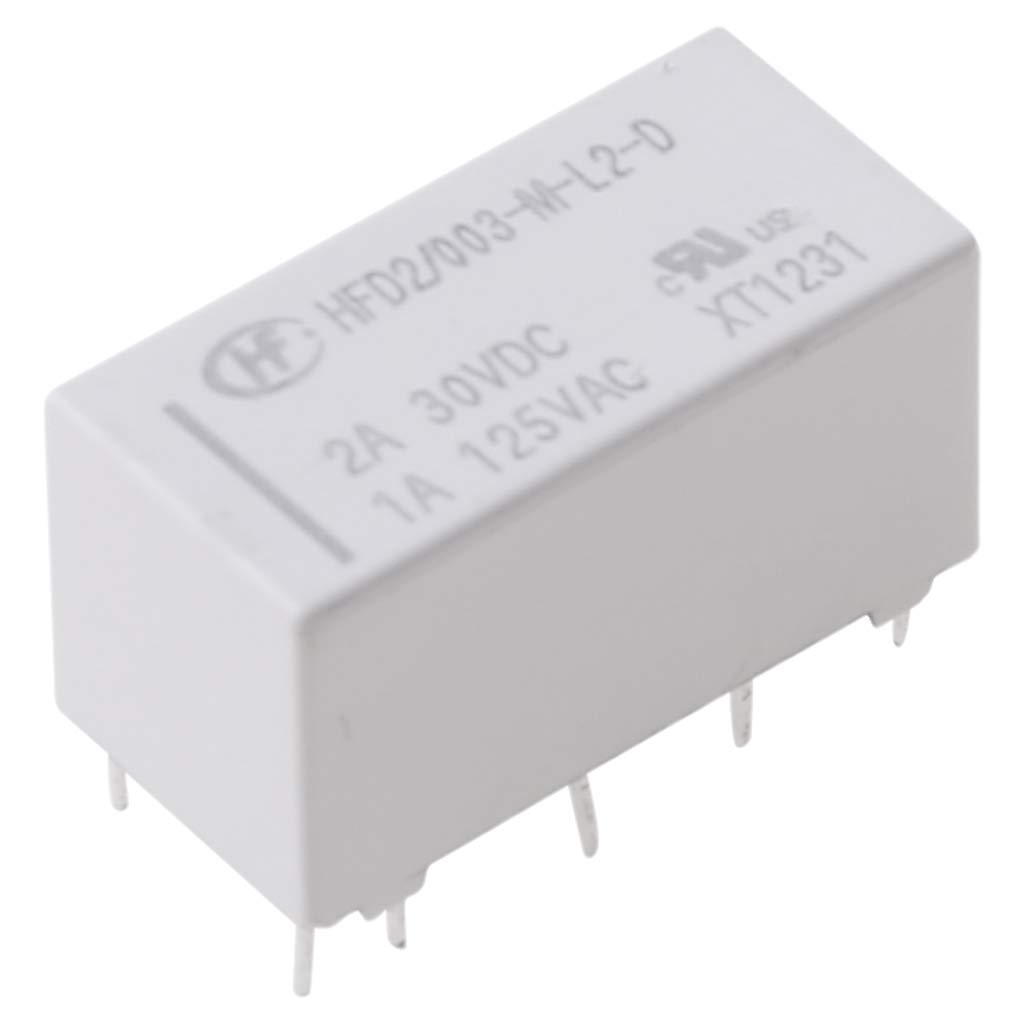

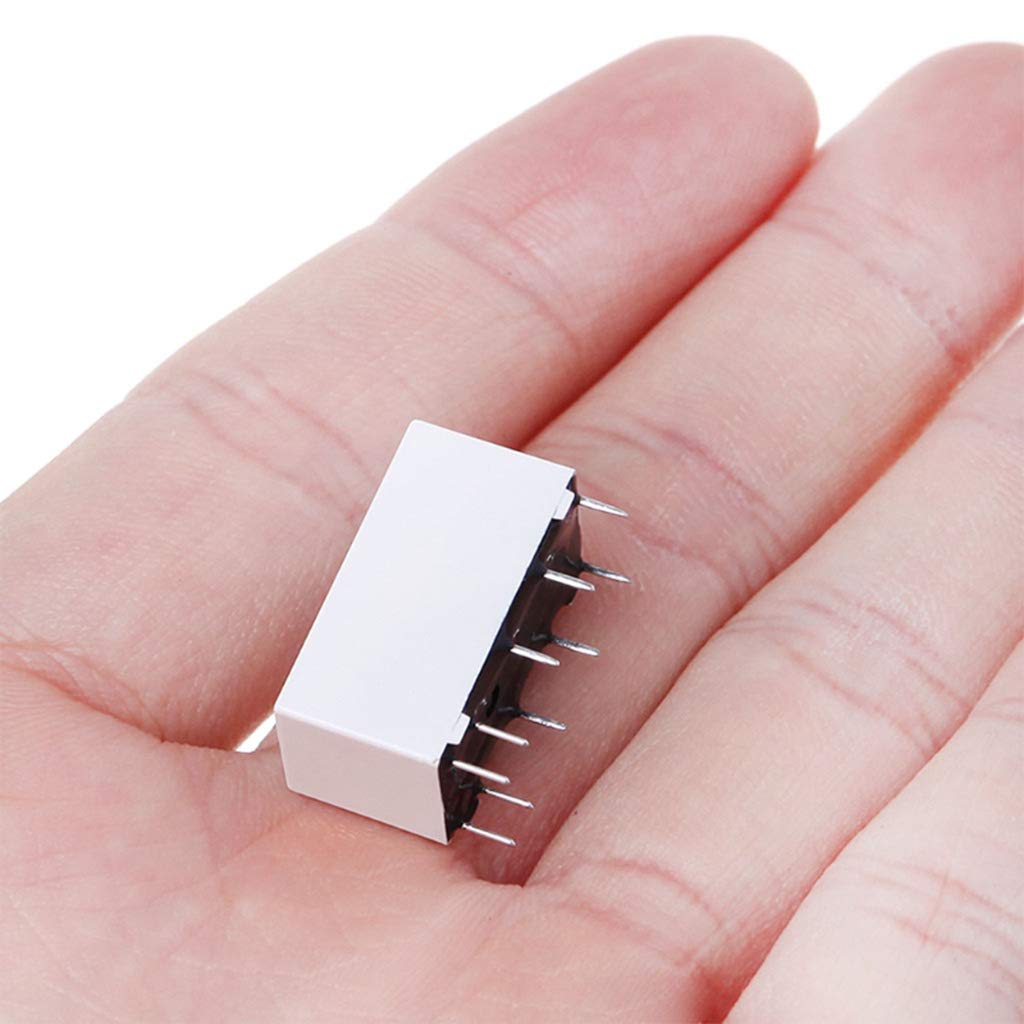

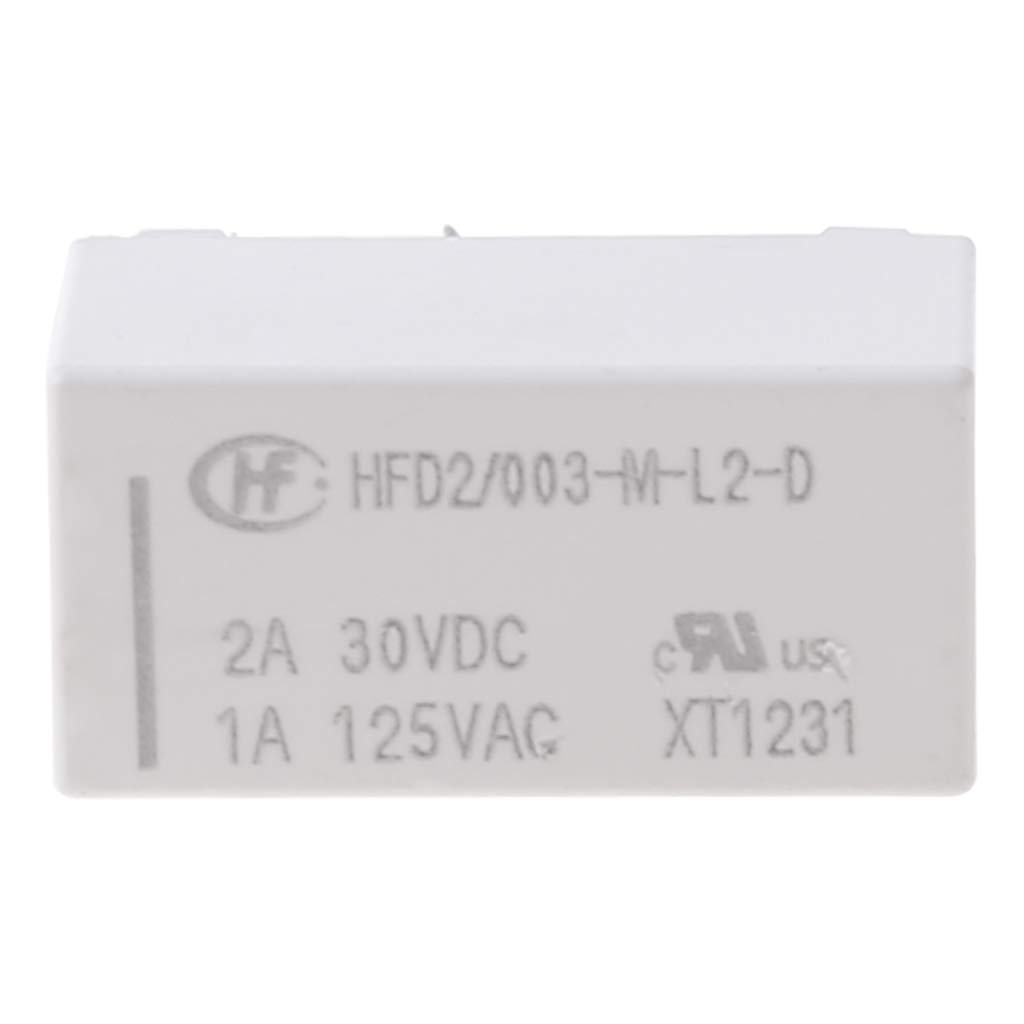

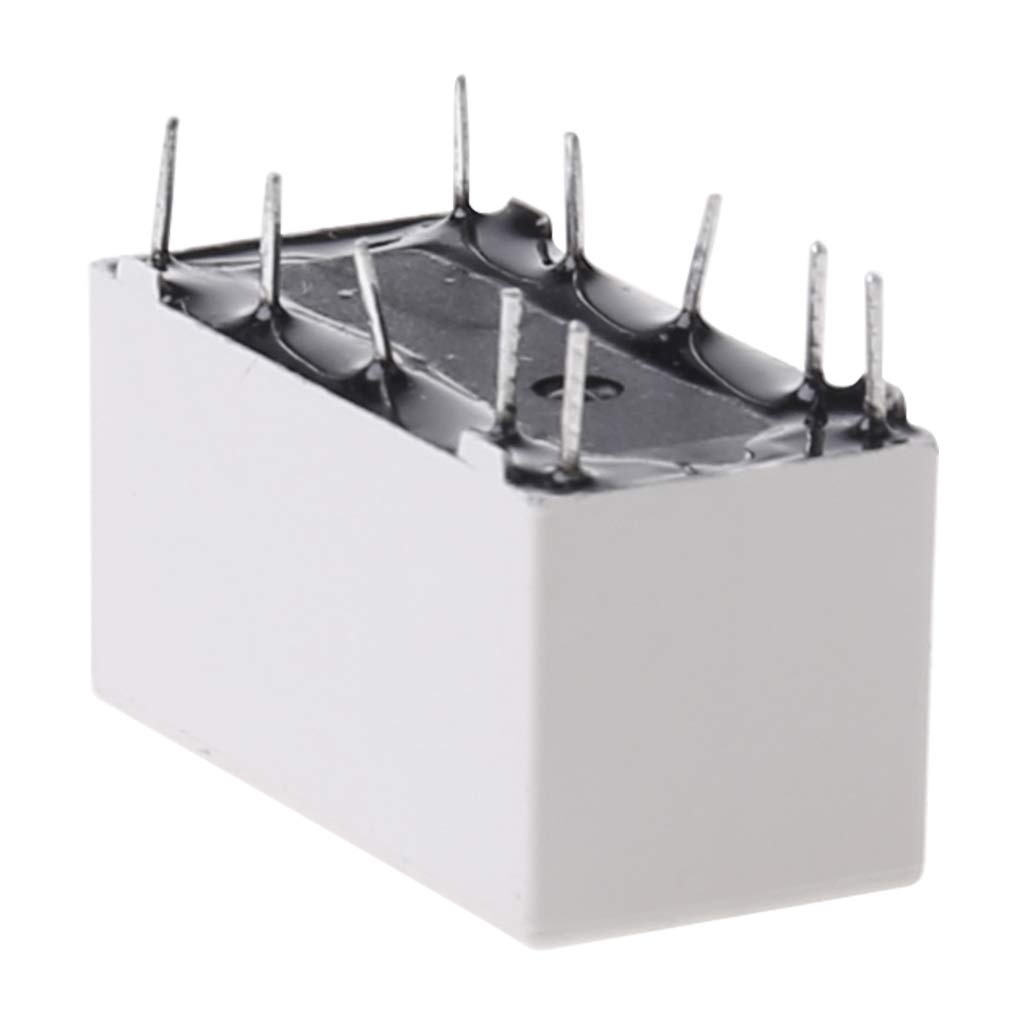

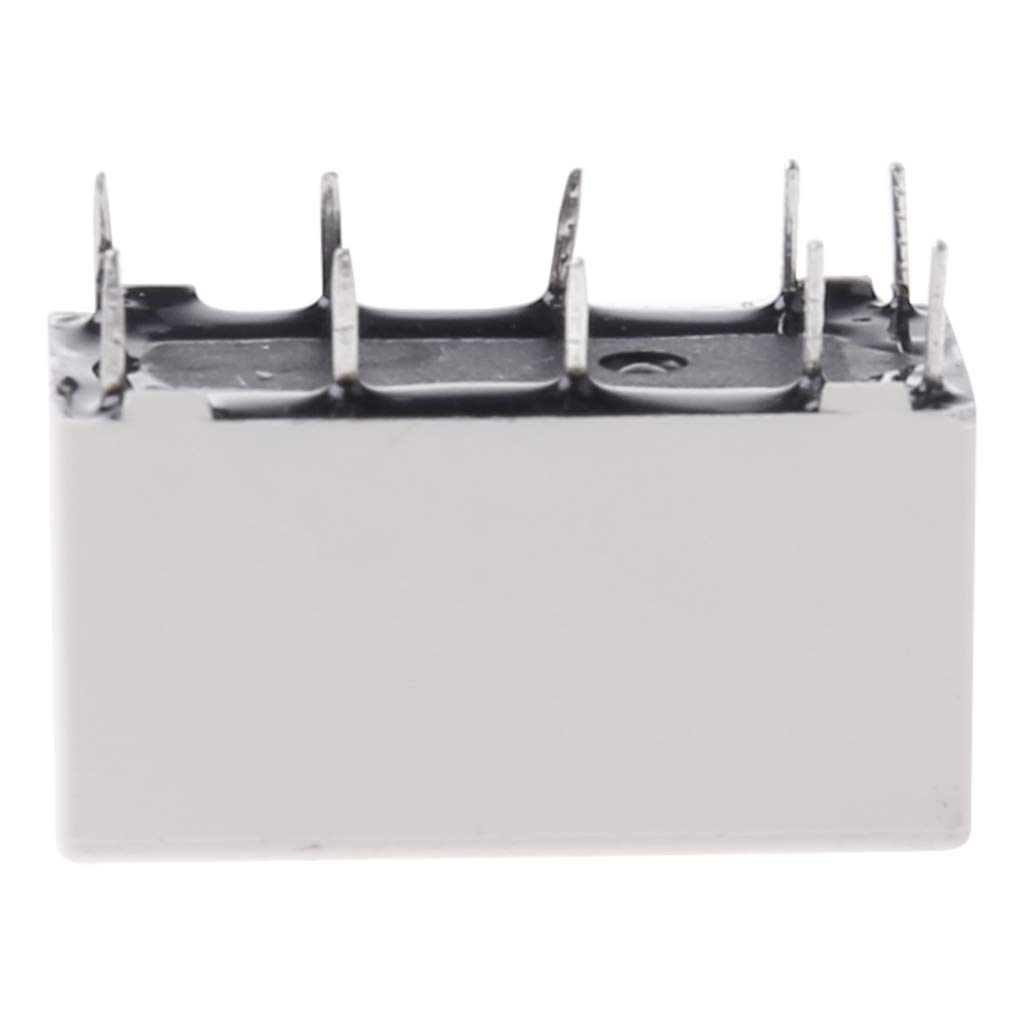

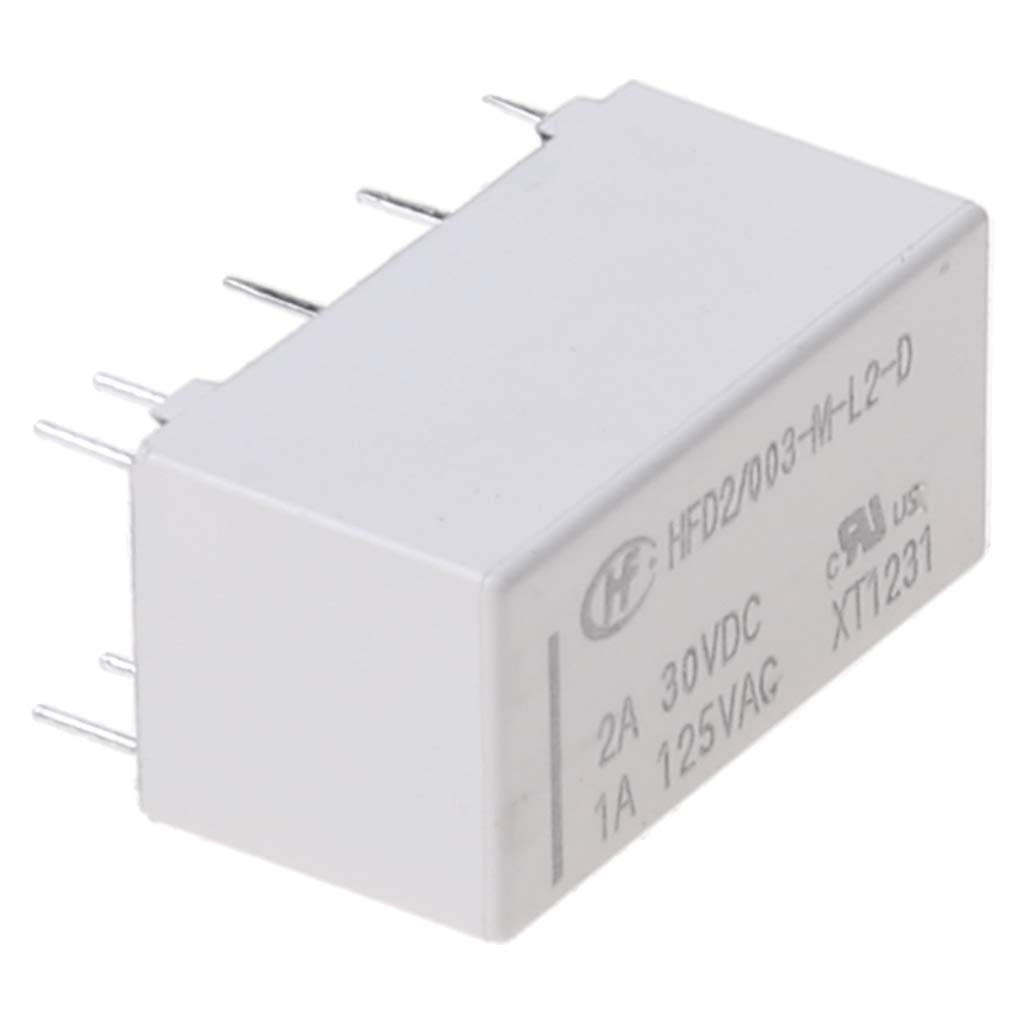

HFD2-003-M-L2-D 3V Coil Bistable Latching Home Improvement Subminiature Double In-line Single Coil Description: and Features: High sensitivity and coil power consumption of 150mW. Double in-line standard pinout. In the form of a bifurcated . parameter: form: 2Z for Touch resistance ≤100mp (10mA 30mvDc) load (resistive) 1A 125VAC. 2A 30VDC 3A 30VDC switching 250VAC / 220VDC, switching current 3A switching power 125VA / 90W Minimum application load 10mv 10μA Insulation resistance: 1000MΩ (500VDC) Withstanding : Between coil and : 1500VDC1min (single coil), 1000VDC1min (double-line ) Between contacts and contacts: 1000VDC 1min Operating for time (under ): ≤4.5ms Release for time (under ): ≤3.5ms Operating for time (magnetic holding type): ≤4.5ms for time (magnetic hold type): ≤4.5ms Temperature : 40 ℃ -85 ℃ Humidity: 5% ~ 85% : 10Hz ~ 55Hz 1.5mm double amplitude : stability 490m / s, strength 980m / s : Printed board (DIP) Specification: Type: Latching Features: Latching , Coil Bistable, Subminiature, , Home Improvement, In-line Single Coil Dimension: app.2x1x1cm/0.79x0.39x0.39in Color: White Quantity: 1 Pc Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 Pc x Latching
